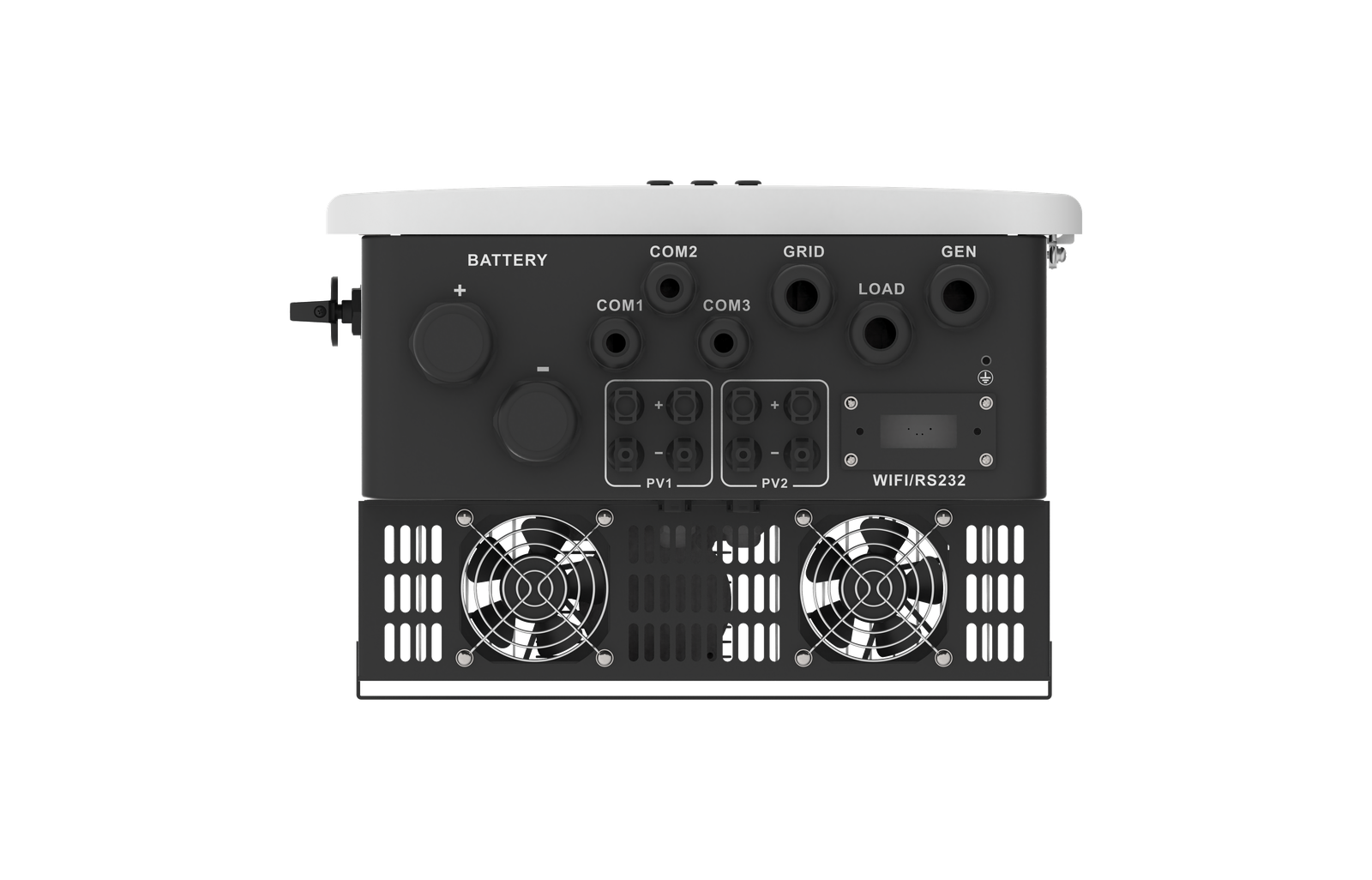

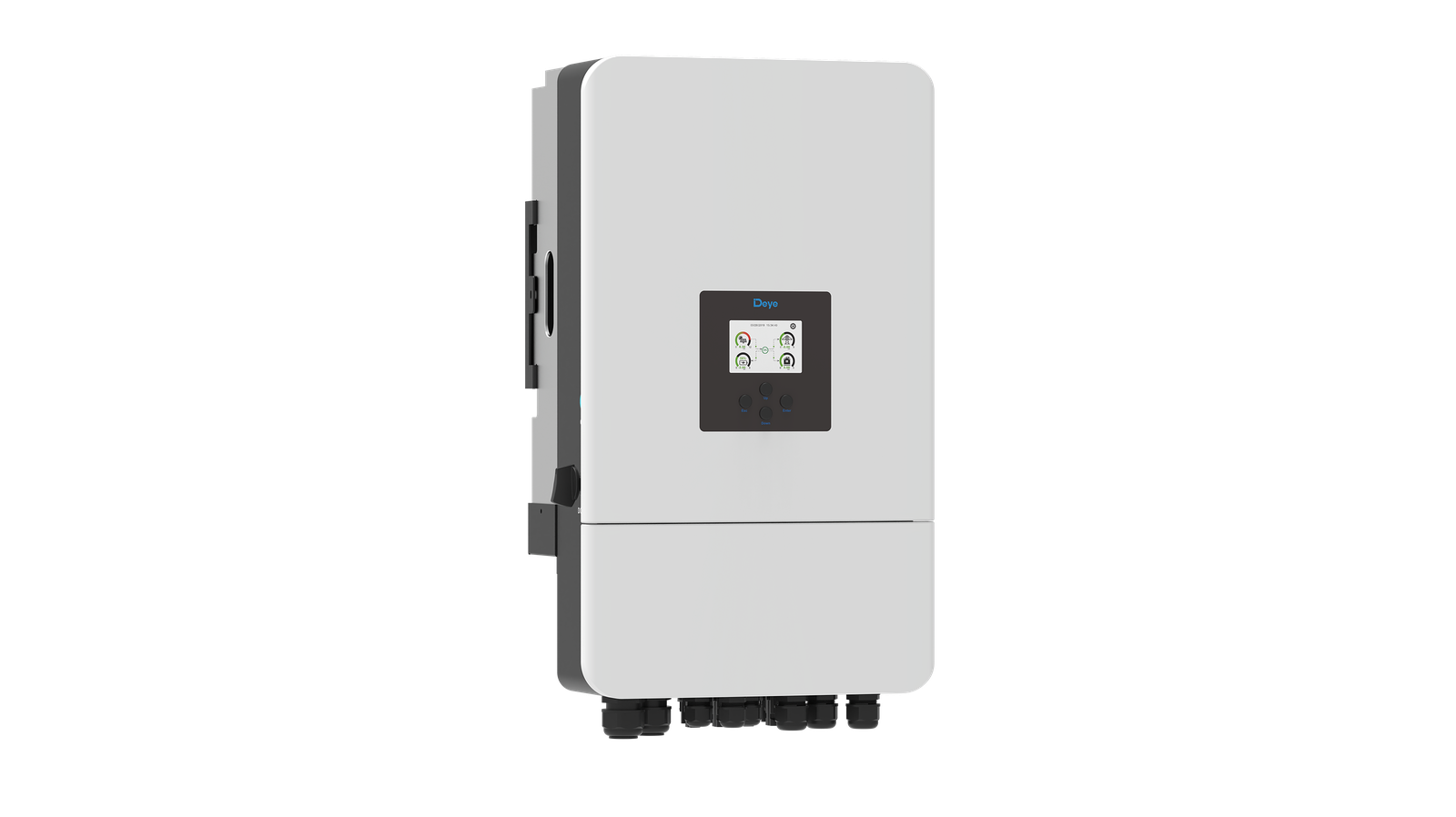

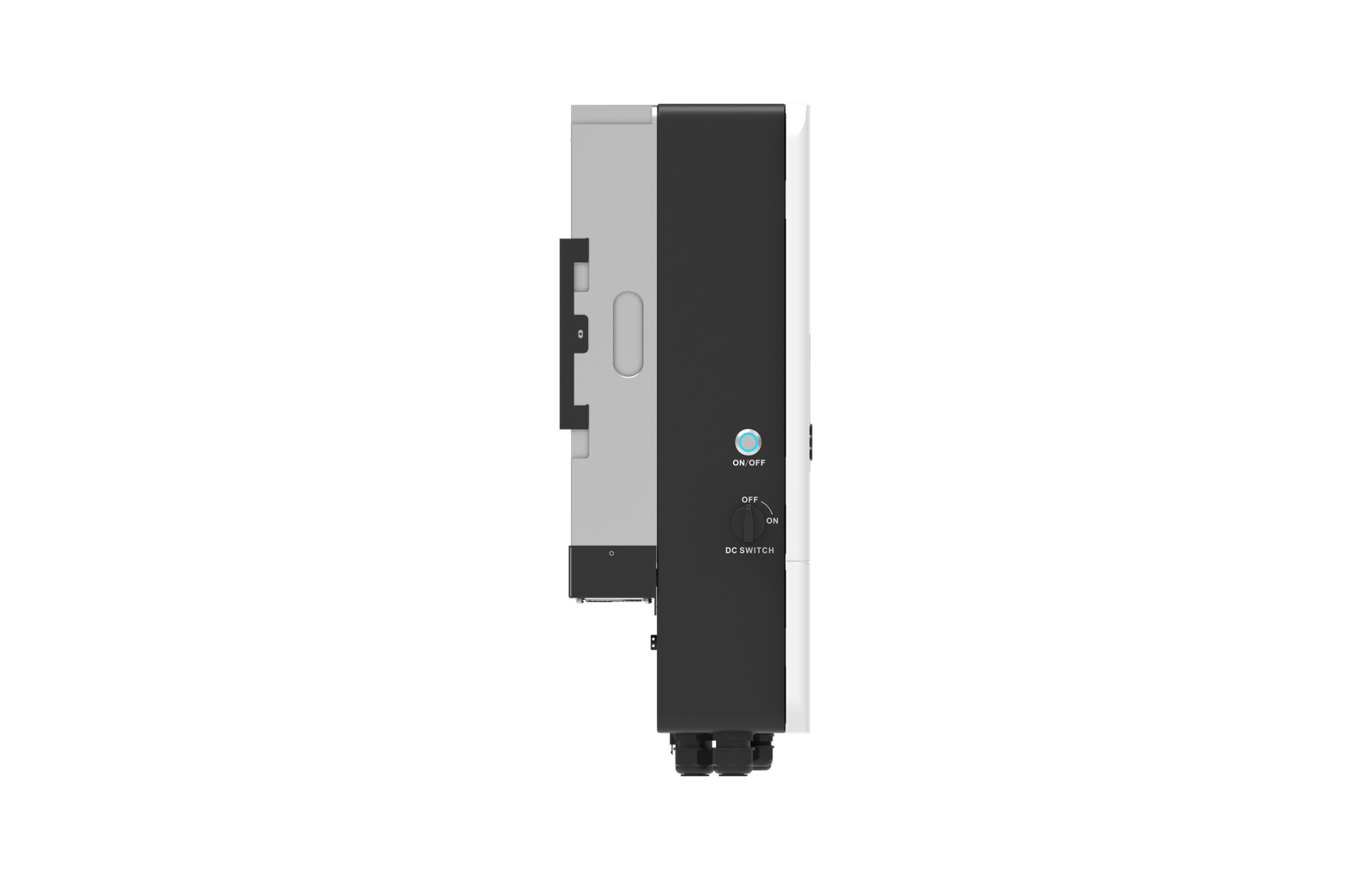

DEYE SUN-6K hybrid 3-phase inverter 6 kW
Fifth-generation 6 kW three-phase hybrid inverter, IP65-rated, with asymmetric output of up to 3 kW per phase and 100% overload capacity for 10 s. Two MPPT trackers 200–650 V, max. PV input 9.6 kW, fully compatible with BAKOM battery systems.
- Power
- 6 kW
- MPPT
- 2×
- Efficiency
- 97,6 %
- Warranty
- 10 years
What it is for.
The second-smallest variant of the DEYE SG05LP3 generation 5 series for low-voltage battery systems of 40–60 V. In the Czech Republic it holds legally valid PPDS A1+A2 certification and may be permanently connected to the distribution grid under the rules in force since 1/1/2025.
Asymmetric three-phase output of up to 3 kW per phase, 100% overload for 10 seconds — comfortably handles the start-up of a compressor, pump or generator.
Two independent MPPT trackers (200–650 V), max. PV input 9.6 kW, suitable for a panel array of ~7 kWp.
Charge/discharge current of 135 A over a 40–60 V range matches a 15S/16S battery system. Communication with the BMS via both CAN and RS-485 — the inverter is fully compatible with BAKOM battery systems.
Smart Load function, Solarman monitoring (Wi-Fi/Ethernet/LTE), IP65, −40 °C to +60 °C. 10-year warranty (5 years full + 5 years on parts).
Technical specifications.
Power and output
PV input
Batteries
Communication and monitoring
Mechanical and operating
Warranty and certification
Enquire about the SUN-6K-SG05LP3-EU-SM2.
Tell us which battery you plan to use with the inverter and how large your PV system is. We will check compatibility and send a quote including the battery communication setup.
