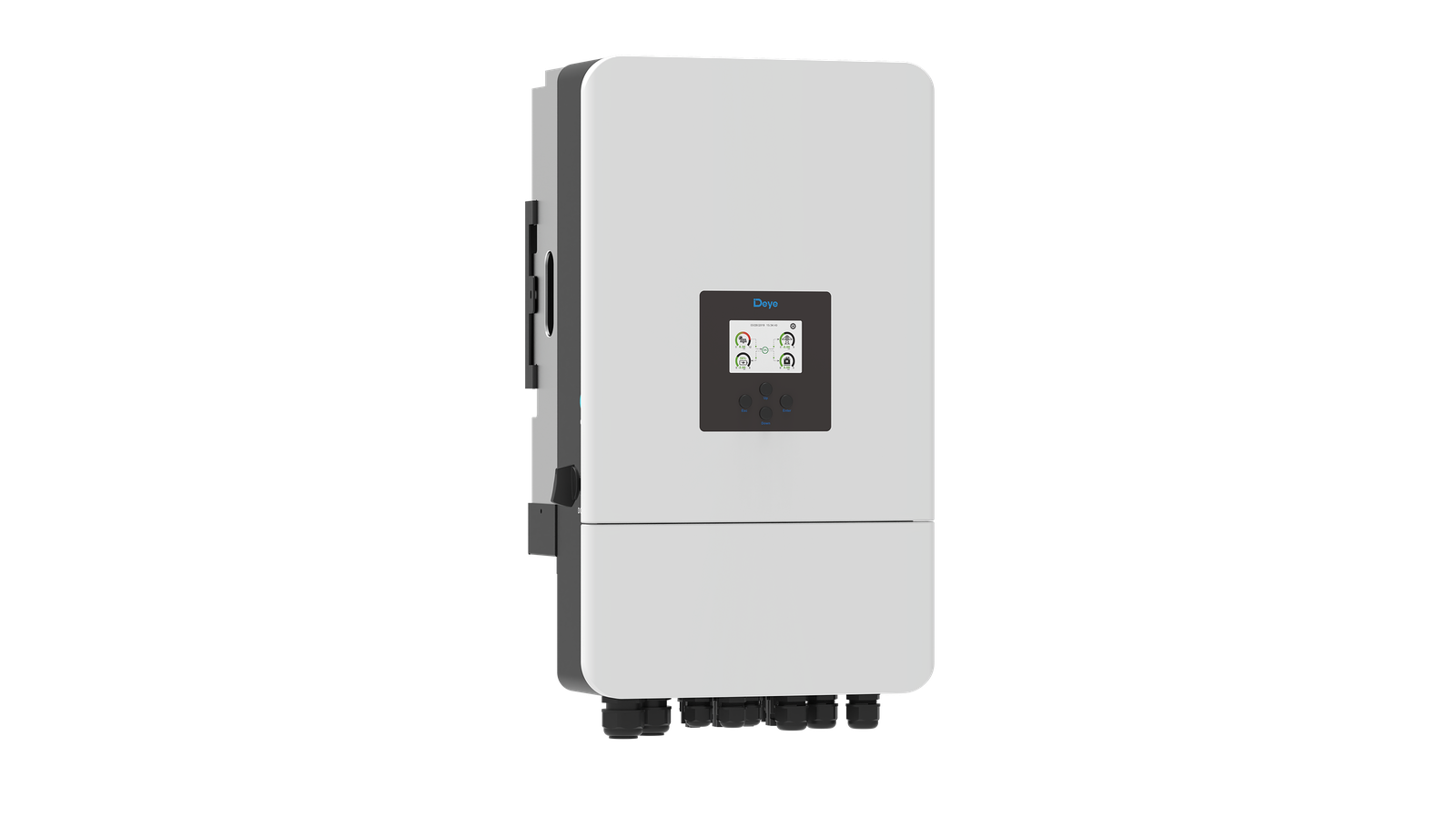

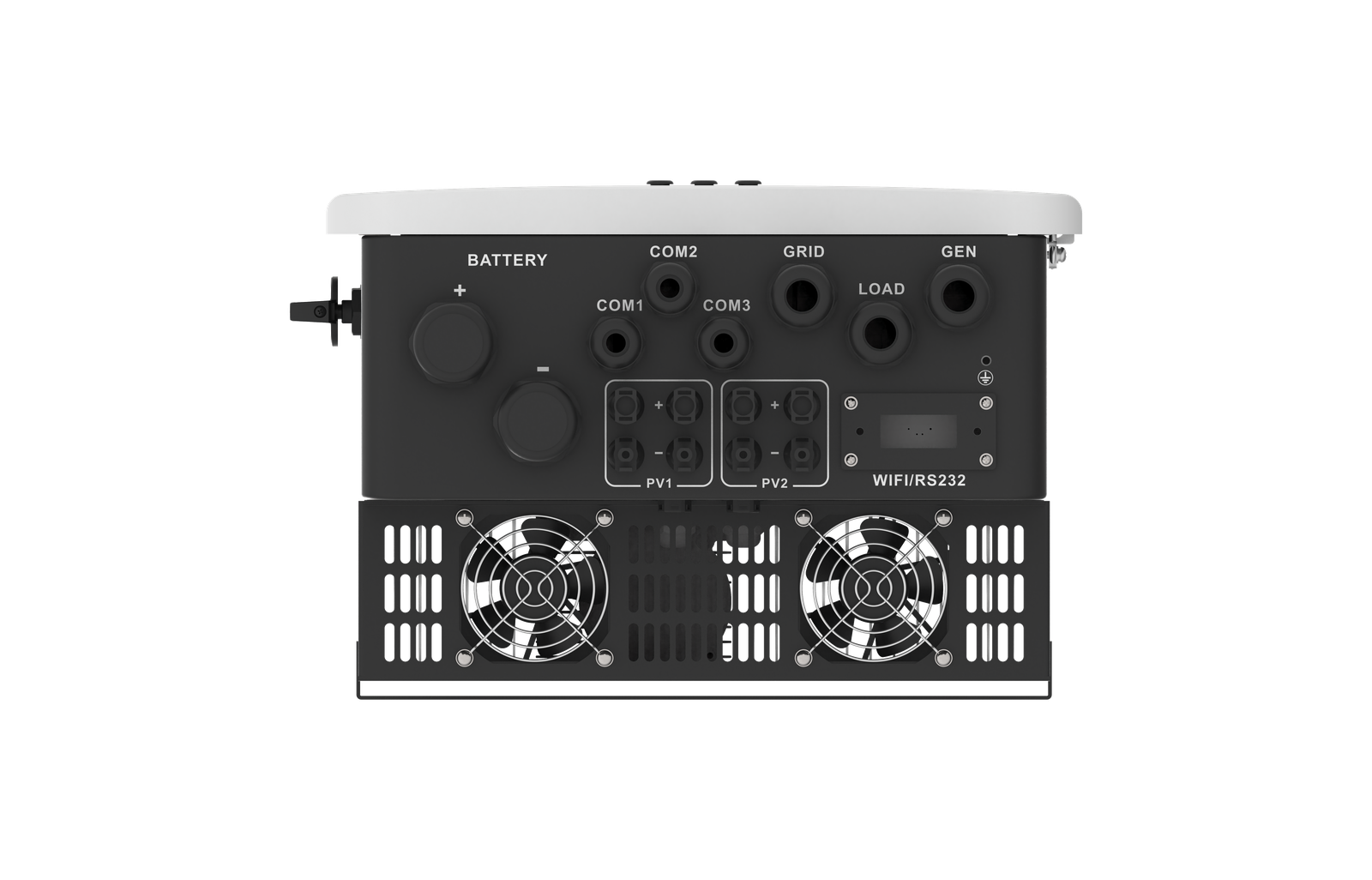

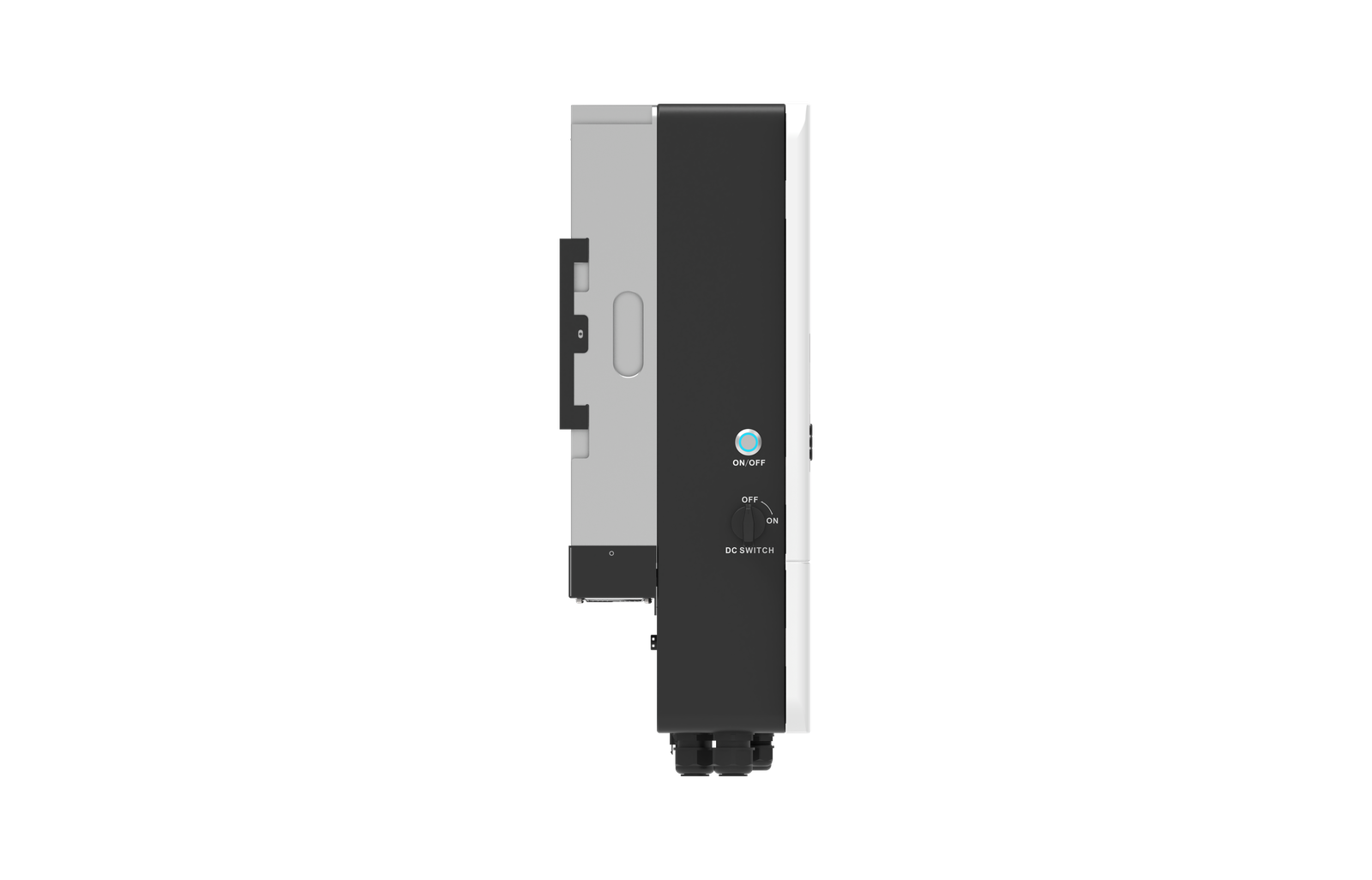

DEYE SUN-10K hybrid 3-phase inverter 10 kW
Fifth-generation 10 kW three-phase hybrid inverter with IP65 protection, asymmetric output of up to 5 kW per phase and 100% overload capacity for 10 s. Two MPPT trackers 200–650 V (2+2 strings), max. PV input 16 kW, fully compatible with BAKOM battery packs.
- Power
- 10 kW
- MPPT
- 2×
- Efficiency
- 97,6 %
- Warranty
- 10 years
What it is for.
Upper mid-range model in the DEYE SG05LP3 series, generation 5, for low-voltage battery systems of 40–60 V. In the Czech Republic it holds legally valid PPDS A1+A2 certification.
Asymmetric three-phase output of up to 5 kW per phase, 100% overload for 10 seconds. Suitable for a larger family home with a heat pump and EV charging.
Two independent MPPT trackers with 2+2 strings (200–650 V) let you combine 4 panel arrays on differently oriented roofs. Maximum PV input power 16 kW (panel array ~12 kWp).
Charge/discharge current of 210 A over a 40–60 V range — communication with the BMS via both CAN and RS-485; the inverter is fully compatible with BAKOM battery systems.
Smart Load function, Solarman monitoring, IP65, −40 °C to +60 °C. 10-year warranty.
Technical specifications.
Power and output
PV input
Batteries
Communication and monitoring
Mechanical and operating
Warranty and certification
Enquire about the SUN-10K-SG05LP3-EU-SM2.
Tell us which battery you plan to use with the inverter and how large your PV system is. We will check compatibility and send a quote including the battery communication setup.
