Accessories · Displays

LCD display for your battery.

The display shows the battery status right where the battery is. It is not essential — you can see the same data and much more for free in the BAKOM BMS app on your phone. It is useful where you want to see the battery status at a glance.

12.8 V AkuBox with a colour LCD display on the lid — AkuBox with display · BK4A

01 / AkuBox

Display for the AkuBox

For batteries in an AkuBox we supply a colour LCD display that replaces the switch — you turn the battery on and off with a button on the display. It is connected to the battery by a cable and shows voltage, current and state of charge.

Because it sits in place of the switch, it is chosen when you order. In the catalogue these are the variants with the letter L in the designation, for example BK4A-L or BK8A-CL. The price is listed with each variant.

The BK16A-RC storage unit in a metal box always has a built-in display — it also shows individual cell voltages and temperatures.

Choose a battery with a display →

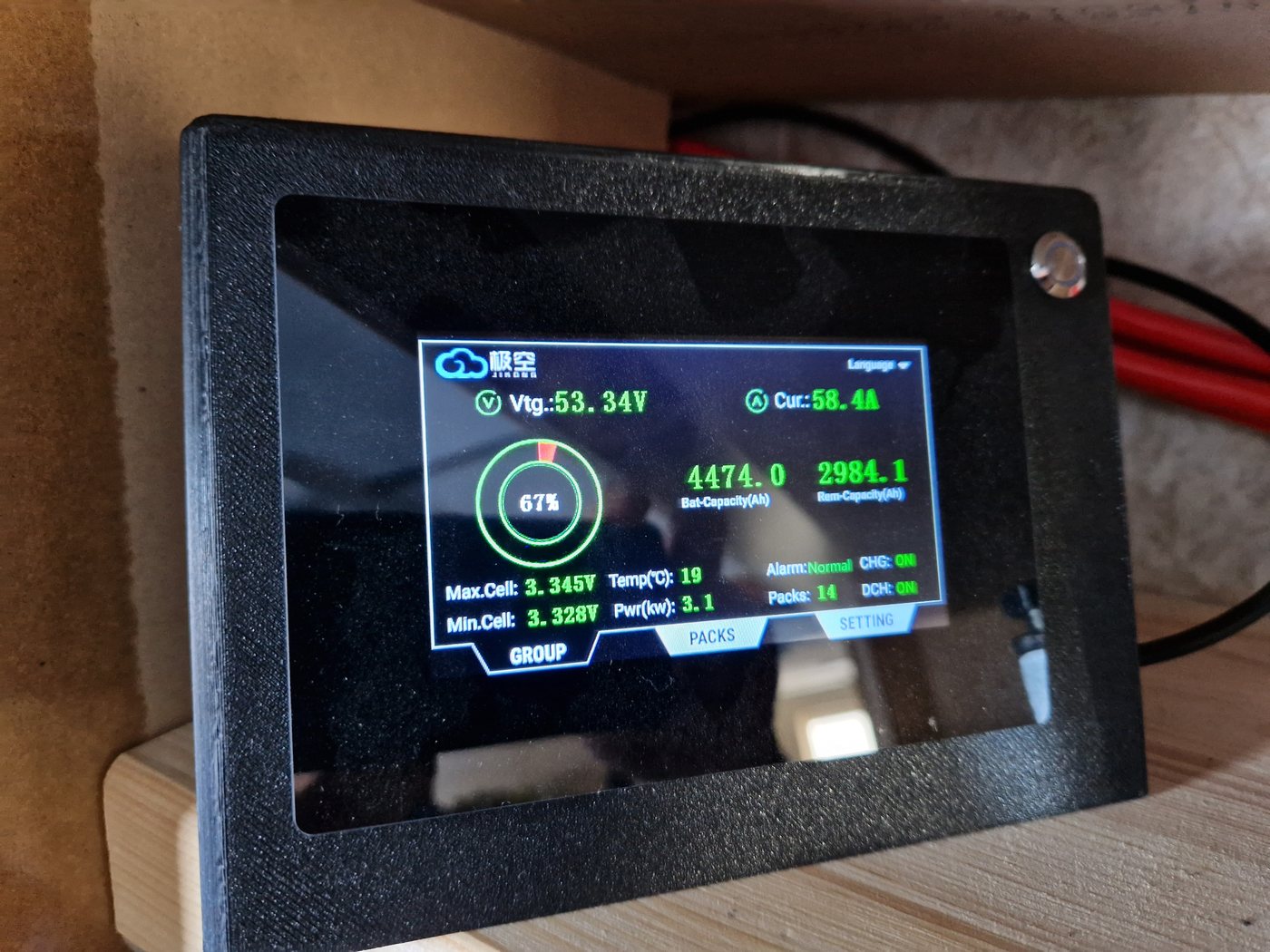

Large LCD touch display in a box with a battery overview — Large display · boxed version

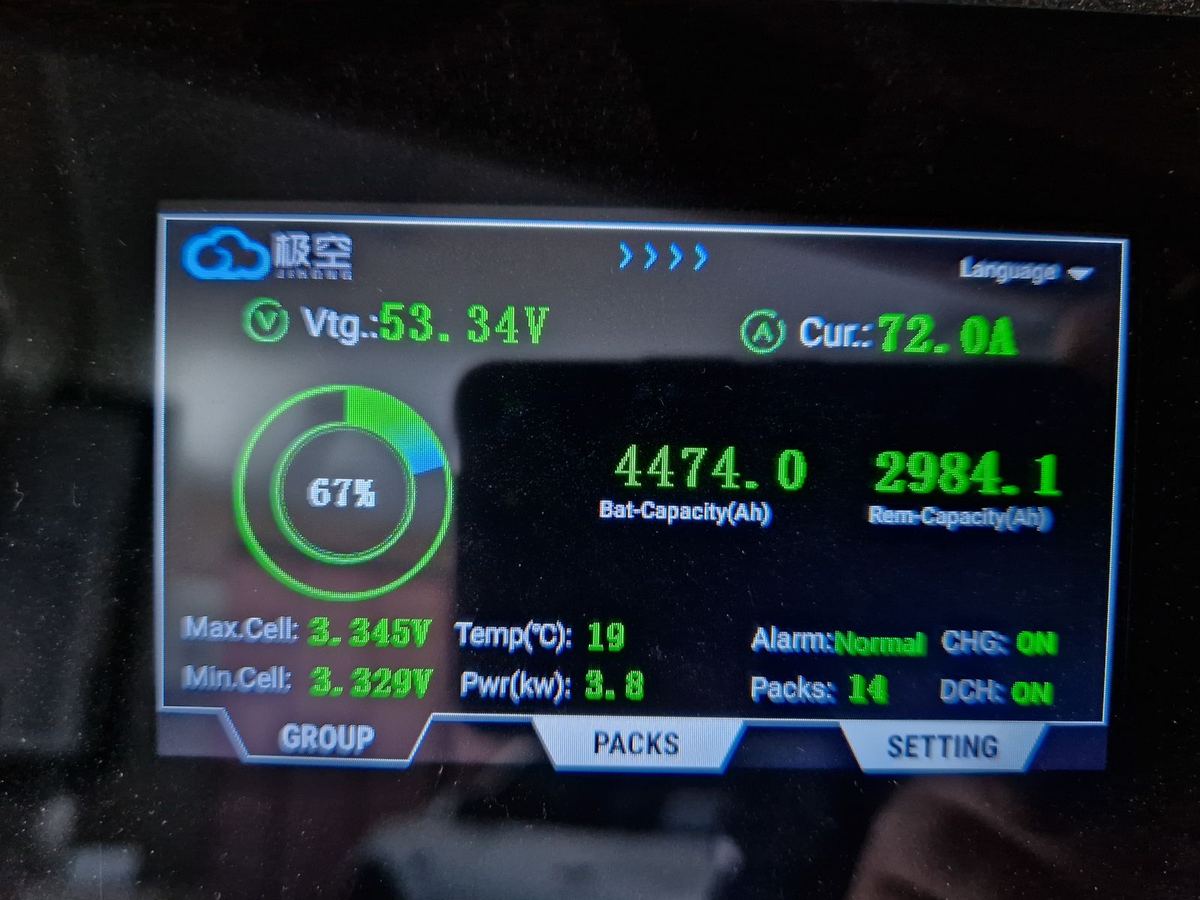

Overview of 14 parallel-connected batteries on the display

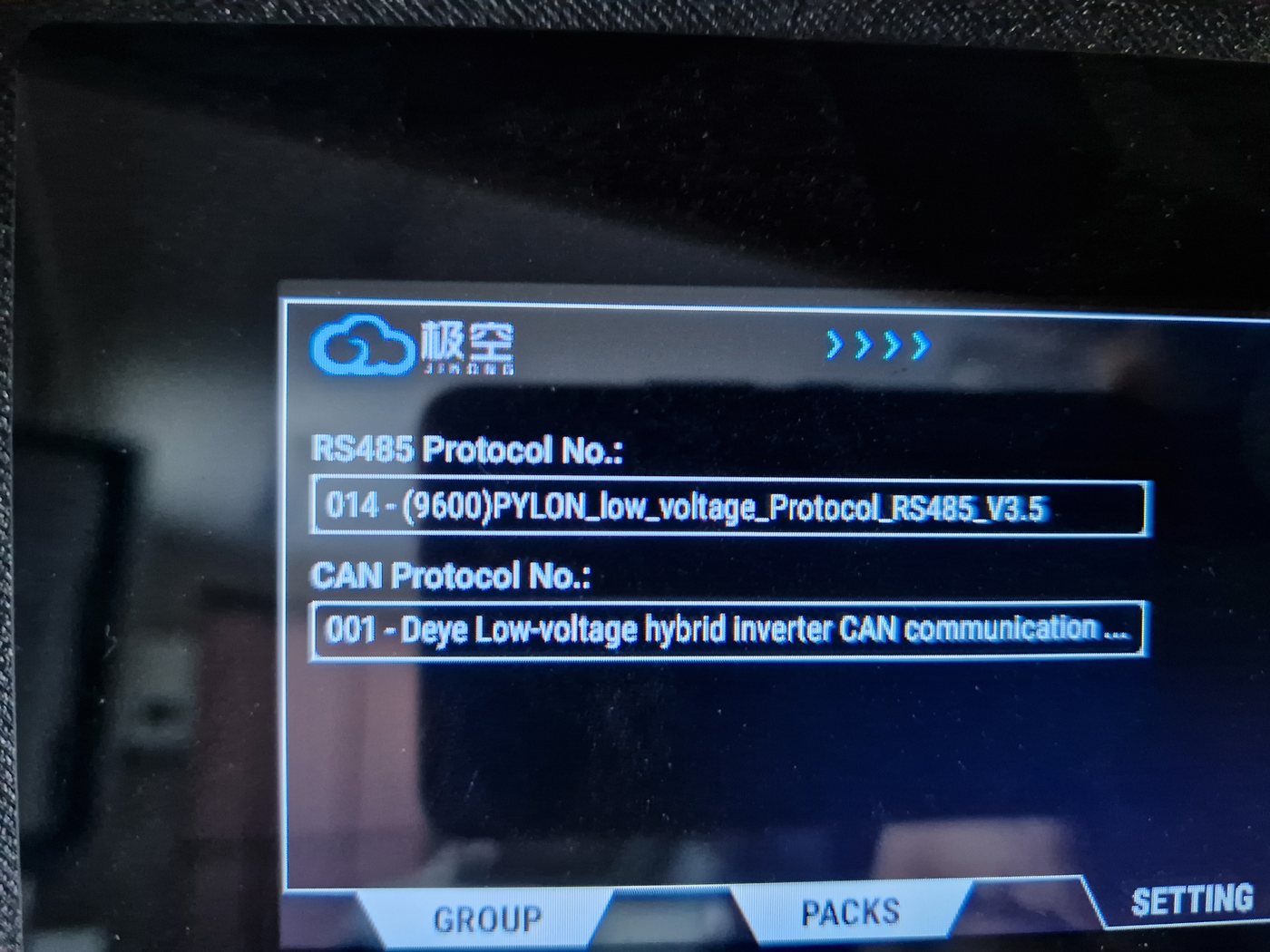

Setting the inverter communication protocol on the display

02 / For BMS+

Large touch display

Display for 48 V and 51.2 V storage systems with the JK PB2A16S20P BMS (BMS+) — fitted, for example, in the BK15K-RC and BK16K-RC batteries.

Overview of all batteries connected by a data link — one display is enough for the whole set
Tap a battery for its details, including individual cell voltages
Voltage, current, state of charge, temperatures and charge/discharge status
The inverter communication protocol (CAN and RS485) can be set directly on the display

Not sure which BMS your battery has? Send us the battery model or a photo of the BMS.

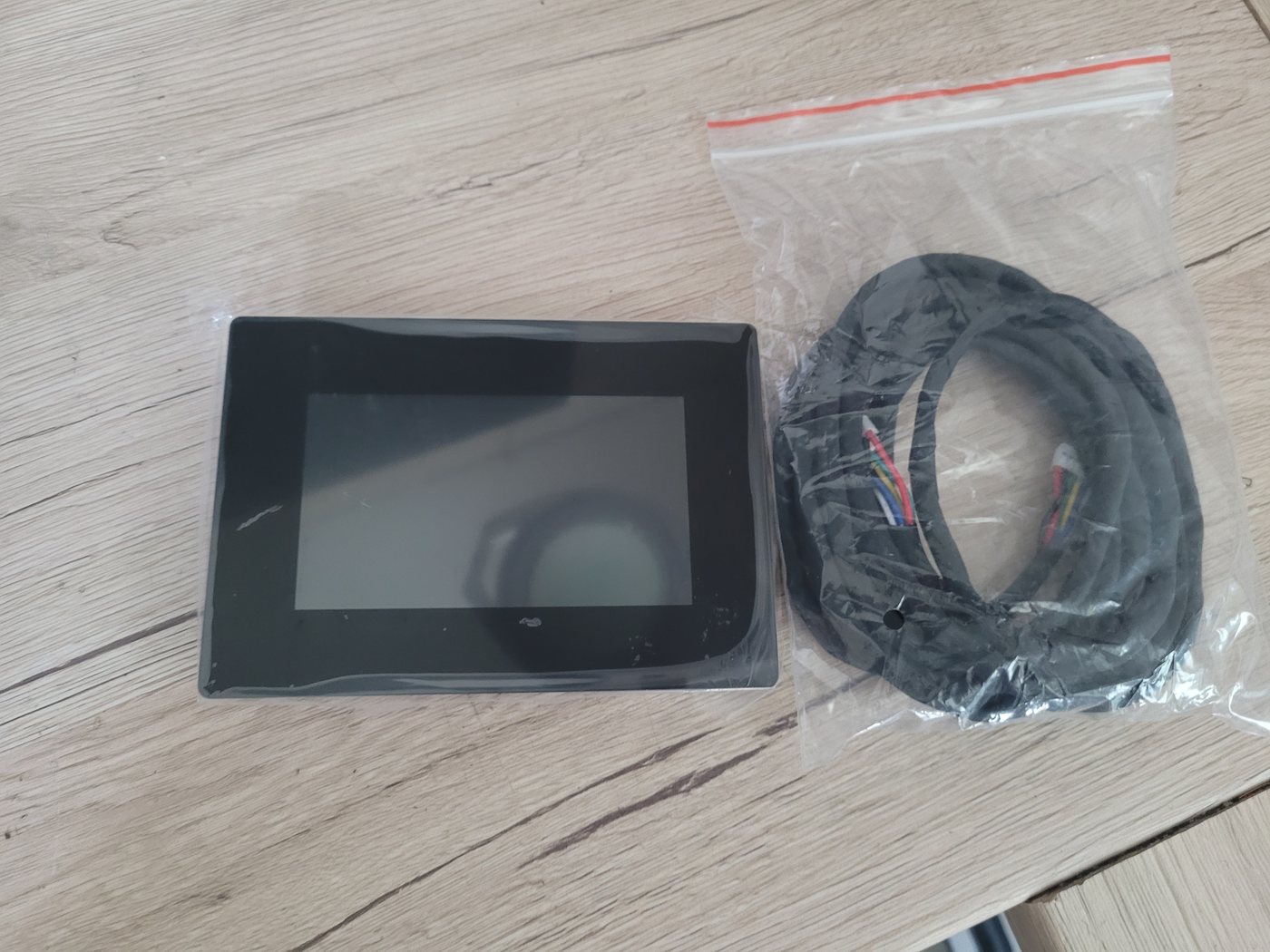

Built-in version

For mounting in a wall or partition. The back with the electronics stays exposed.

CZK 1,033 excl. VAT

CZK 1,250 incl. VAT

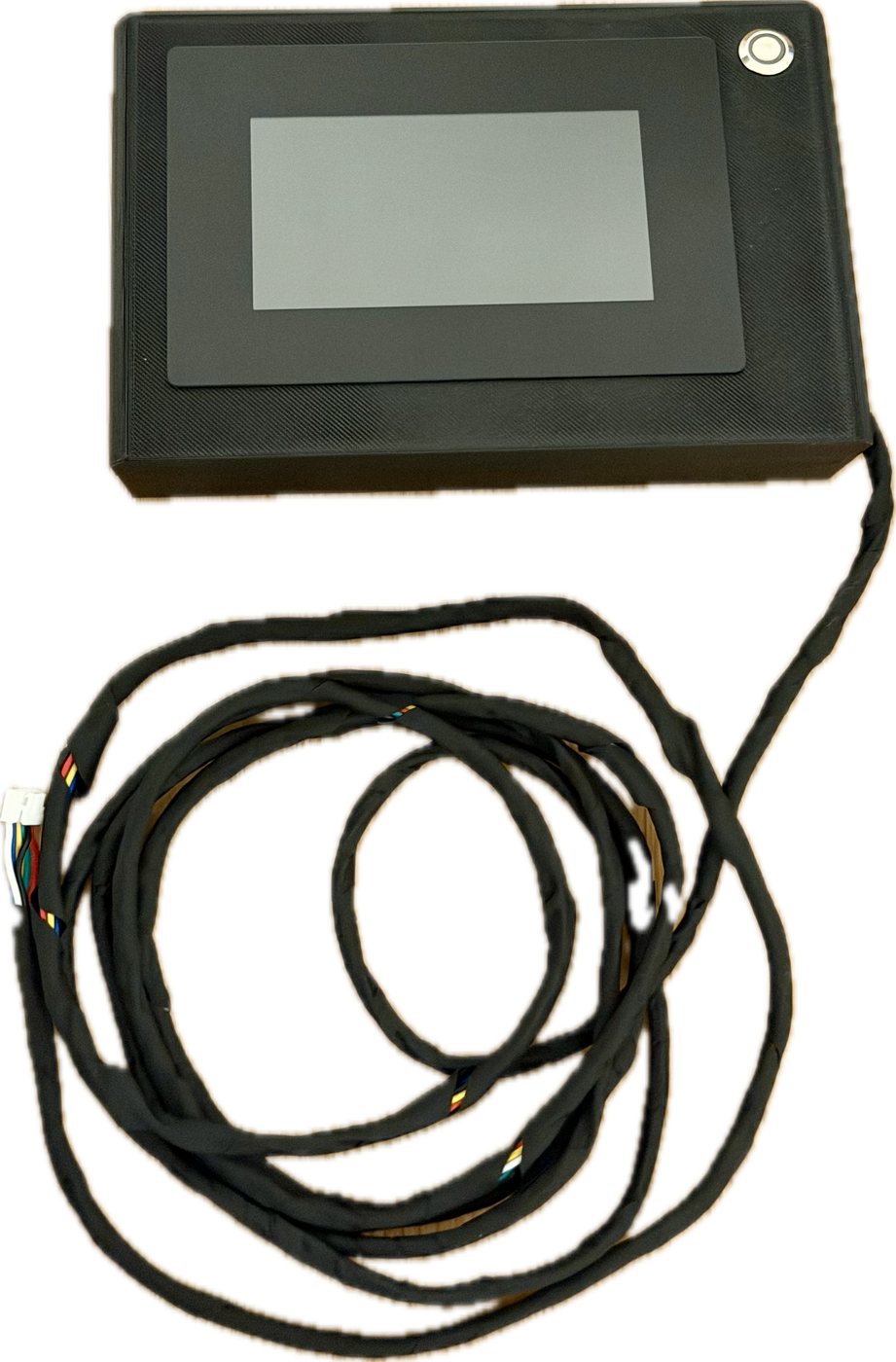

Large display in a plastic box with a switch

Boxed version

In a free-standing plastic box. The display switch is in the frame.

CZK 1,644 excl. VAT

CZK 1,990 incl. VAT

Inquiry · LCD

A display for your battery.

Tell us the battery type (or BMS) and which version of the display you want. We will check that it fits your battery and send a quote including delivery.
